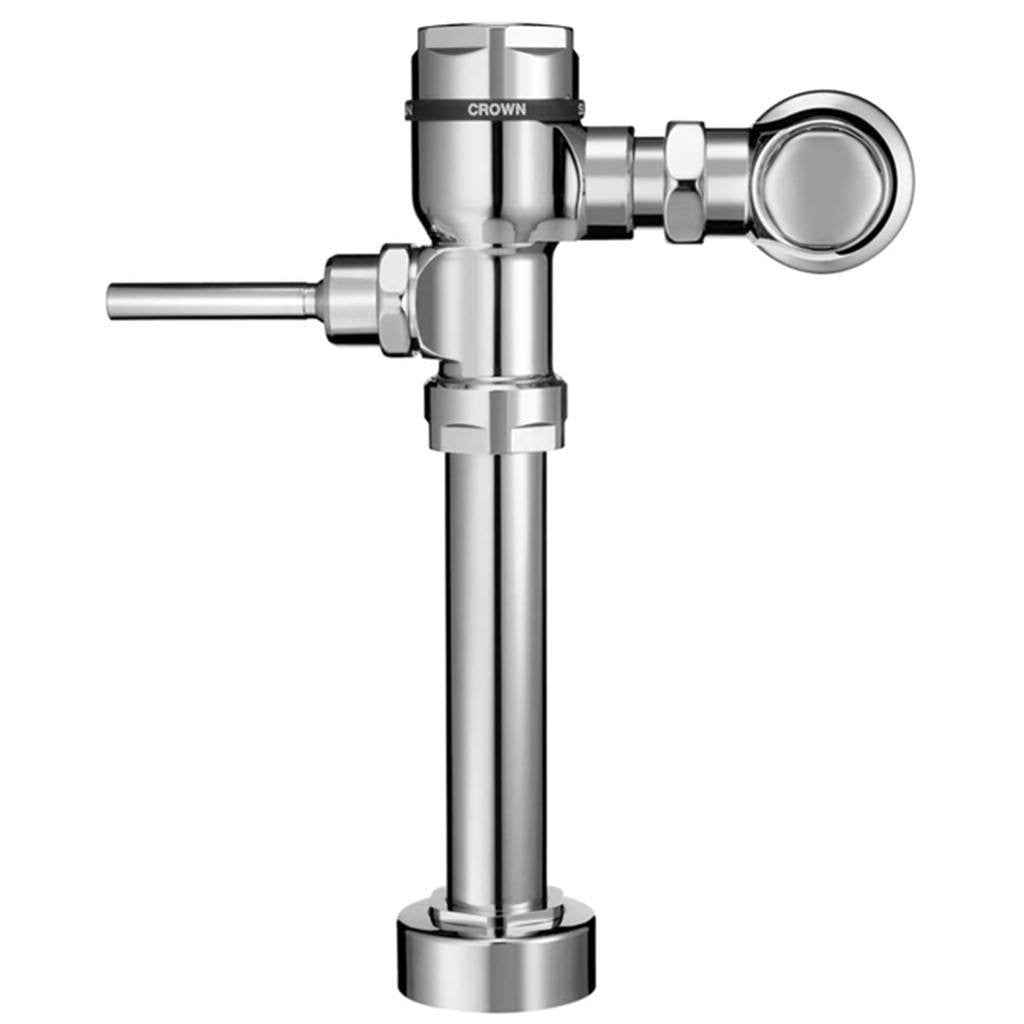

Crown Flushometer 1.6 GPF for Closet

Part Number: #08754
Sloan Model Number: CROWN 111-1.6
Sloan Code Number: 3120000
Manufacturer: Sloan

Specifications:
1.6 GPF Exposed, Piston Type, Chrome Plated Closet Flushometer with the following features:
• Fixed Volume Piston with Filtered O-ring Bypass
• ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
• 1” I.P.S. Screwdriver Bak-Chek® Angle Stop
• Locking Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
• Spud Coupling and Flange for 1-1/2” Top Spud
• Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Valve designed to accept Low and Ultra-Low Consumption Pistons only to ensure Water Conservation
• Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Handle Packing, Main Seat, Stop Seat and Vacuum Breaker molded from PERMEX™ Rubber Compound for Chloramine Resistance

Resources:
• Sloan 3120000 Spec Sheet
• Crown/Crown 2 Parts Breakdown

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
