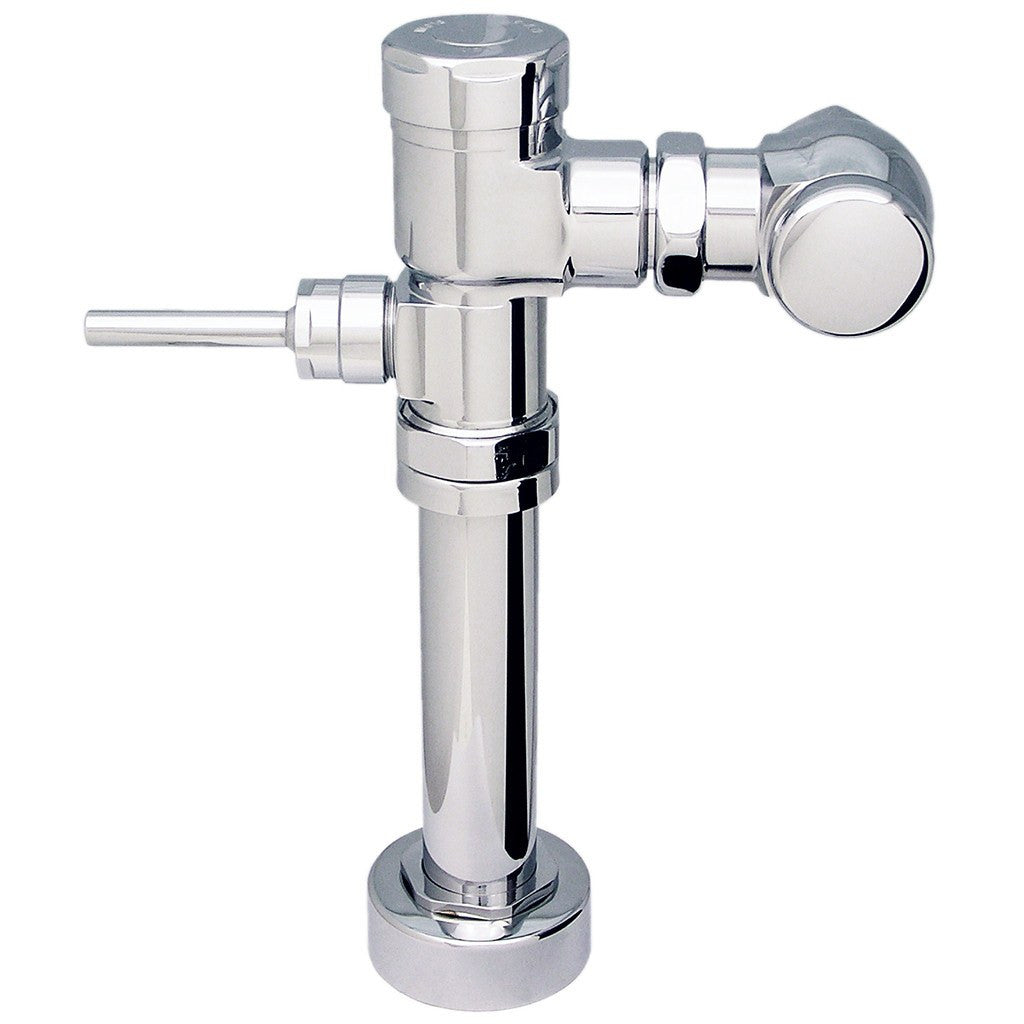

GEM 2 Flushometer 1.6 GPF for Closet

Part Number: #08716
Sloan Model Number: GEM-2 111-1.6-XL
Sloan Code Number: 3070004
Manufacturer: Sloan

1.6 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, GEM-2® Exposed Manual Water Closet Flushometer

Specifications:
• Flush Volume: 1.6 gpf (6.0 Lpf)
• Finish: Polished Chrome (CP)
• Valve: Piston
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Top Spud
• Rough-In Dimension: 11 1⁄2" (292mm)
• Spud Coupling: 1 1⁄2" (38mm)
• Supply Pipe: 1" (25mm)
• Adapter: XL Sweat Solder Adapter Kit (XL)

Features:
• Fixed Volume Piston with Filtered O-ring Bypass
• ADA Compliant Metal Oscillating Non-Hold-Open Handle
• Control Stop Plug
• Spud Coupling, Wall and Spud Flanges for 11⁄2” Top Spud
• Cast Set Wall Flange with Set Screw
• Sweat Solder Adaptor with cover tube
• Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
• Handle Packing, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine Resistance
• 1” I.P.S. Screwdriver Bak-Chek® Angle Stop

Compliances & Certifications:
ADA Compliant, cUPC Certified, BAA Compliant

Resources:
• Sloan 3070004 Spec Sheet
• GEM 2 Parts Breakdown and Troubleshooting Guide

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
