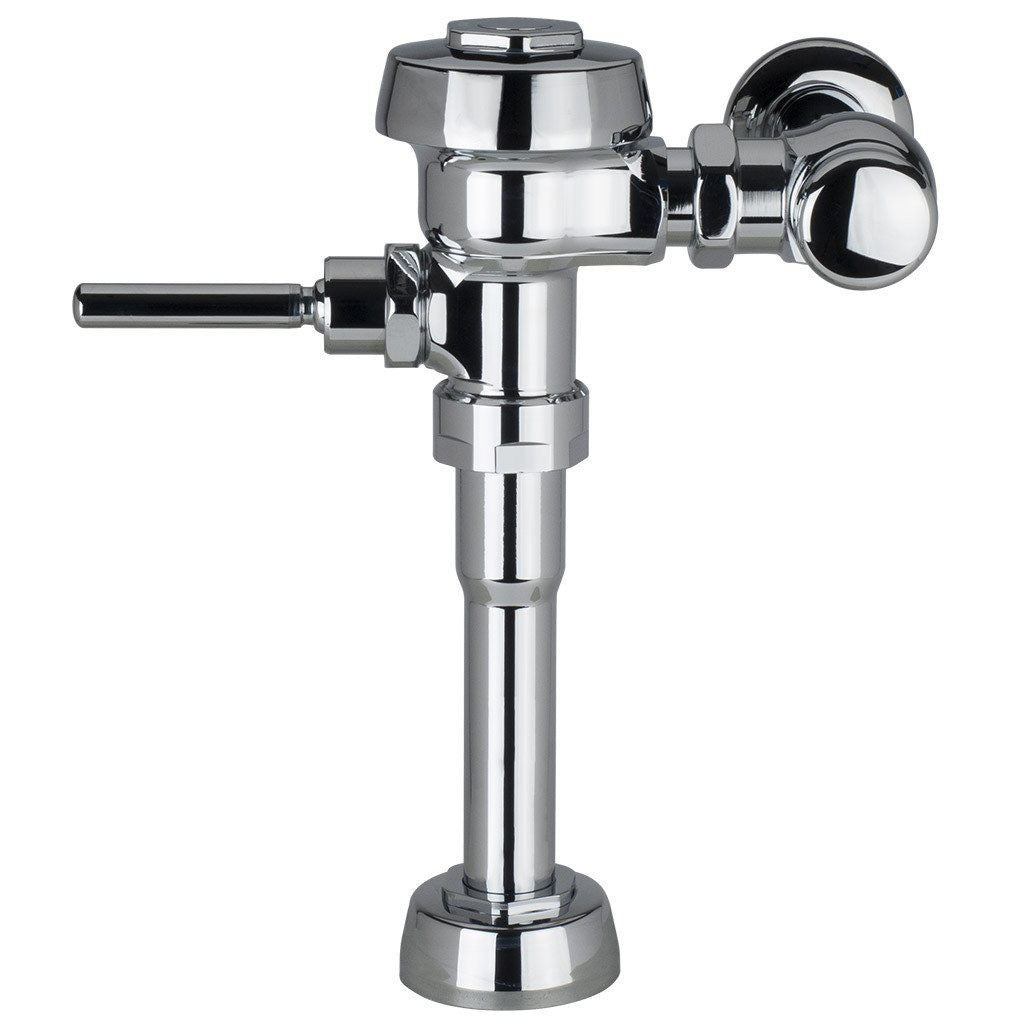

Royal Flushometer 1.0 GPF for Urinal with 1-1/4" Top Spud

Part Number: #08332
Sloan Model Number: ROYAL 180-1.0
Sloan Code Number: 3012436
Manufacturer: Sloan

Exposed Flushometer for 1-1/4” top spud urinals. 1.0 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Royal® Exposed Manual Urinal Flushometer.

Specifications:
• Flush Volume: 1.0 gpf
• Finish: Polished Chrome (CP)
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud
• Rough-In Dimension: 11 1⁄2"
• Spud Coupling: 1-1/4" (32mm)
• Supply Pipe: 1"

Features:
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
• Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance ADA Compliant Metal Oscillating Non-Hold-Open Handle
• 1” I.P.S. Screwdriver Bak-Chek® Angle Stop w/ Free Spinning Vandal Resistant Stop Cap

Compliances & Certifications:
ADA Compliant, cUPC Certified, BAA Compliant

Resources:
• Sloan 3012436 Spec Sheet
• Royal Flushometer Parts Breakdown and Troubleshooting Guide

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
