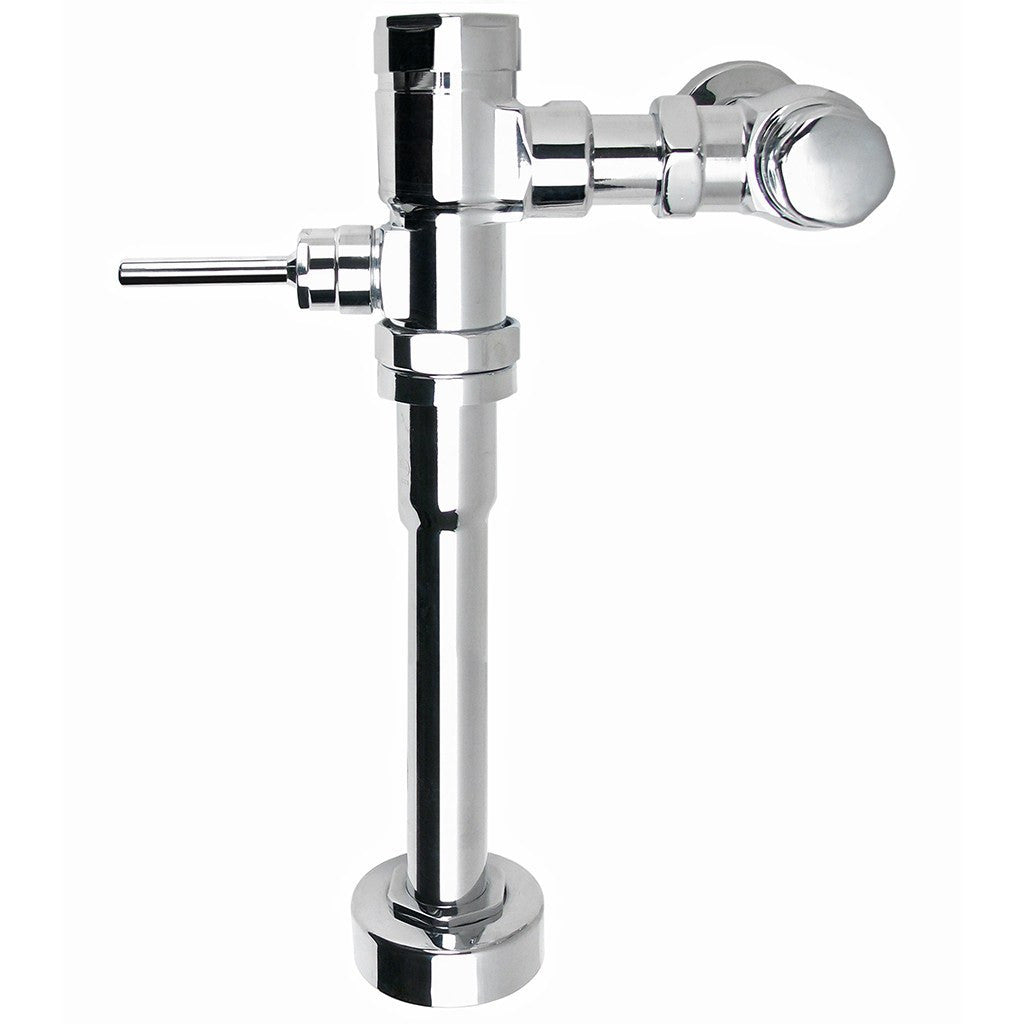

GEM 2 Flushometer 3.0 GPF for Urinal



Part Number: #08785
Sloan Model Number: GEM-2 180-3.5-XL
Sloan Code Number: 3072428
Manufacturer: Sloan

3.5 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, GEM-2® Exposed Manual Urinal Flushometer.

• Flush Volume: 3.5 gpf (13.2 Lpf)
• Finish: Polished Chrome
Valve: Piston
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top Spud
Rough-In Dimension: 11 1⁄2" (292mm)
Spud Coupling: 1 1⁄4" (32mm)
Supply Pipe: 1" (25mm)
• Adapter: XL Sweat Solder Adapter Kit (XL)

• Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
ADA Compliant Metal Oscillating Non-Hold-Open Handle
Vacuum Breaker Flush Connection
Fixed Volume Piston with Filtered O-ring Bypass
Handle Packing, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine Resistance
Spud Coupling, Wall and Spud Flanges for 11⁄4” Top Spud
1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap

Compliances & Certifications:
ADA Compliant, cUPC Certified, BAA Compliant

Sloan 3072428 Spec Sheet
GEM 2 Parts Breakdown and Troubleshooting Guide
