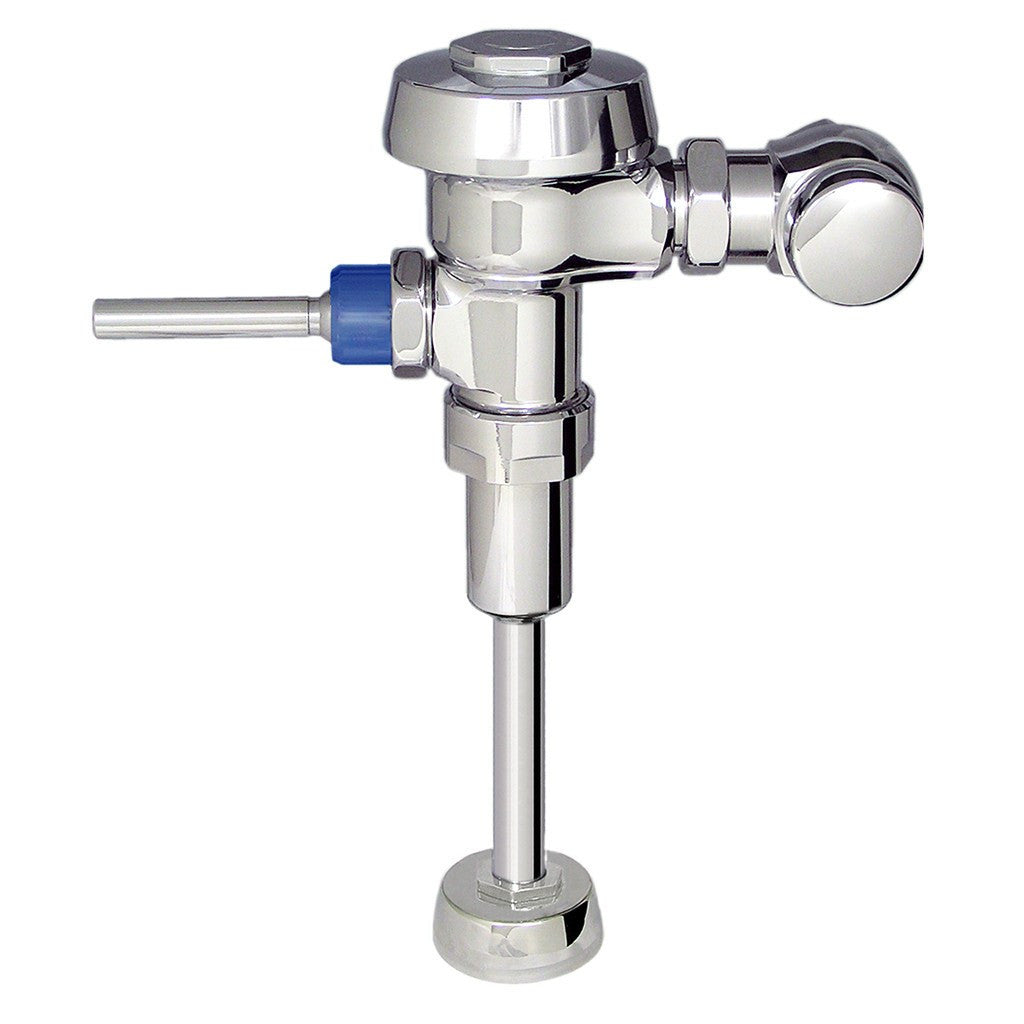

Royal Flushometer 0.5 GPF for Urinal with Antimicrobial Handle

$297.17

40310036

Part Number: #40310036
Sloan Model Number: ROYAL 186-0.5
Sloan Code Number: 3912697
Manufacturer: Sloan



Exposed Urinal Flushometer for 3/4” top spud urinals. This unit is a combination of the 0.5 GPF Royal Urinal Flushometer (Sloan Code Number 3912697) and Sloan's ADA Antimicrobial Handle (Sloan Code Number 0302330). 0.5 GPF, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Royal® Exposed Manual Urinal Flushometer. The antimicrobial handle helps stop the spread of germs.



Specifications:
• Flush Volume: 0.5 gpf
• Finish: Polished Chrome
(CP)
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud
• Rough-In Dimension: 11 1⁄2" (292mm)
• Spud Coupling: 3⁄4" (19mm)
• Supply Pipe: 3⁄4" (19mm)



Features:
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
• Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation that is Antimicrobial
• Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX®
• Rubber Compound for Chloramine Resistance ADA Compliant Metal Oscillating Non-Hold-Open Handle
• High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed bypass
• Adjustable Tailpiece
• 3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop w/ Free Spinning Vandal Resistant Stop Cap
• 3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop w/ Free Spinning Vandal Resistant Stop Cap



Compliances & Certifications:
ADA Compliant, BAA Compliant, BREEAM Materials Credit, BREEAM Water Credit, Carbon Neutral, cUPC Certified, cUPC Green Certified, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, LBC Credit, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, LEED V4 Water Efficiency Credit, Satisfies LEED Credits, WaterSense Listed, WELL Building Standard



Resources:
Sloan 3912697 Spec Sheet
Royal Flushometer Parts Breakdown and Troubleshooting Guide



Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
