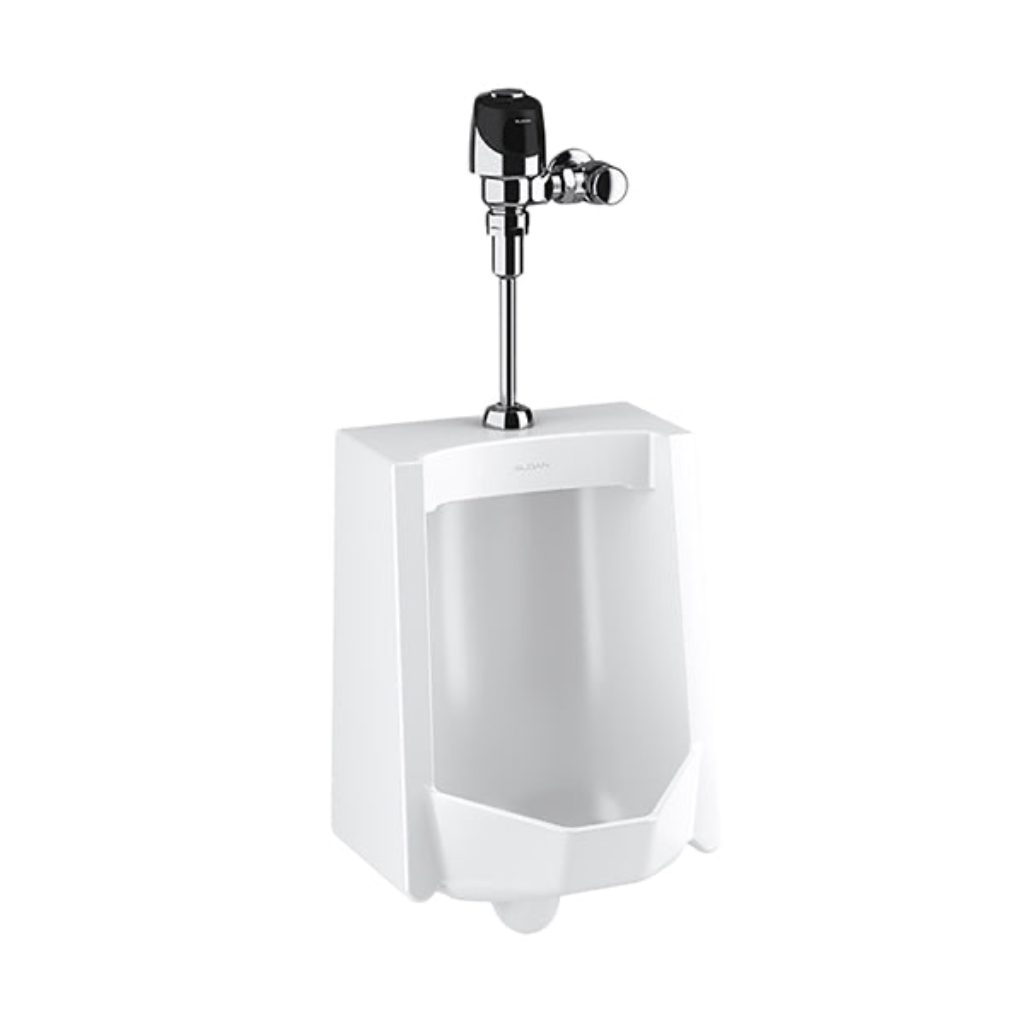

Sloan SU-1009 Urinal with G2 Sensor Flushometer 1.0 GPF Combination Unit

Part Number: #20061
Sloan Model Number: WEUS-1006.1401
Sloan Code Number: 10061401
Manufacturer: Sloan

This Urinal and 1.0 GPF Flushometer combination is from Sloan. Consists of both a SU-1009 urinal (code number 1101009) and a G2 8186 flushometer (code number 3250401). The flushometer has a polished chrome finish, while the urinal is made of white vitreous china. Sloan model number WEUS-1006.1401, code number 10061401.

Specifications:
• Flush Volume: 1.0 GPF
• Nominal Dimensions: 14-1/4" x 17-1/4" x 25-1/2"

Flushometer Features:
• Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
• Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
• "Low Battery" Flashing LED
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• Courtesy Flush® Override Button
• 3/4" I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
• Four (4) Size AA batteries included
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

Urinal Features:
• White Vitreous China
• Washdown flushing action
• Integral flushing rim
• 3/4" I.P.S. top spud inlet
• 2" NPT outlet flange
• Vandal resistant strainer assembly included
• All mounting hardware included
• 100% factory flush tested

Compliances & Certifications:
ADA Compliant, BAA Compliant, cUPC Certified, EPD, HPD, UL Certified, WELL Building Standard

Resources:
• Sloan 10061401 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
