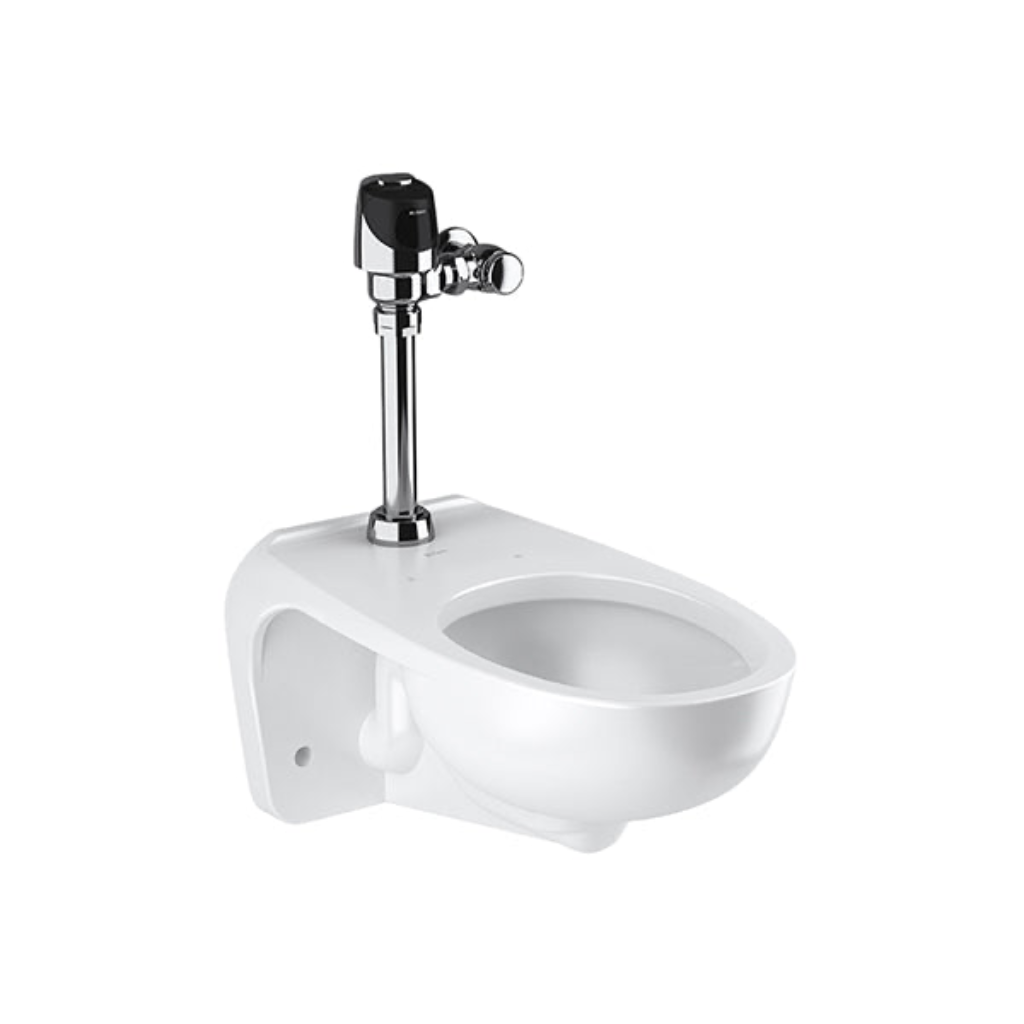

Sloan Wall Mounted Toilet with G2 Sensor Flushometer 1.6 GPF Combination Unit
Part Number: #20060
Sloan Model Number: WETS-2453.1401
Sloan Code Number: 24531401
Manufacturer: Sloan
This Water Closet and 1.6 GPF Flushometer combination is from Sloan. Consists of both a ST-2459 water closet (code number 2102459) and a G2 8111 flushometer (code number 3250400). The flushometer has a polished chrome finish, while the closet fixture is made of white vitreous china. Sloan model number WETS-2453.1401, code number 24531401.
Specifications:
• Flush Volume: 1.6 GPF
• Nominal Dimensions: 26-3/4" x 15" x 13-1/4"
Flushometer Features:
• Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
• Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
• User friendly three (3) second Flush Delay "Low Battery" Flashing LED
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• Courtesy Flush® Override Button
• 1" I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Four (4) Size AA batteries included
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Water Closet Features:
• White Vitreous China
• Elongated bowl
• Wall mounted, wall outlet
• Siphon jet flushing action achieves 1000g Map score when used with any Sloan flushometer
• Static load rating of 750 lbs (tested according to the procedure outlined in Section 6.7 of ASME A112.19.2. Not recommended for bariatric use)
• Water spot area: 10-1/8" x 9-3/8"
• 1-1/2" I.P.S. top spud inlet
• 2-1/8" fully glazed trapway
• Toilet seat not included
Compliances & Certifications:
ADA Compliant, BAA Compliant, BREEAM Materials Credit, Carbon Neutral, cUPC Certified, EPD, HPD, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, LEED V4 Water Efficiency Credit, Satisfies LEED Credits, WaterSense Listed, WELL Building Standard
Resources:
• Sloan 24531401 Spec Sheet
Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
