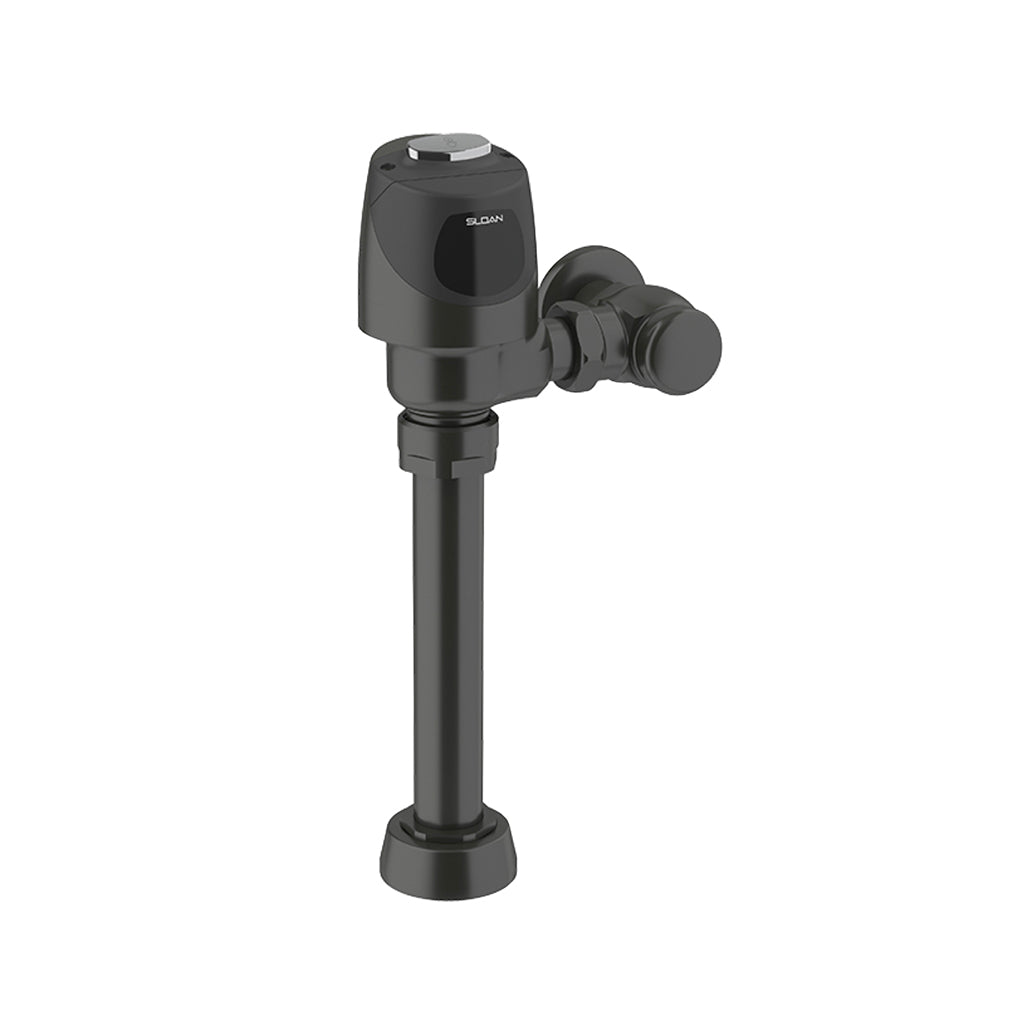

G2 Handsfree Flushometer 1.6 GPF for Closet with Graphite Finish

Part Number: #21576
Sloan Model Number: G2 8111-1.6 GR
Sloan Code Number: 3250315
Manufacturer: Sloan

This 1.6 GPF top spud G2 Sensor Closet Flushometer is from Sloan. Fixture has a graphite finish. Unit is sensor operated and powered by batteries. Sloan model number G2 8111-1.6 GR, code number 3250315.

Specifications:
• Flush Volume: 1.6 GPF
• Finish: Graphite
• Power Type: Battery
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Top Spud
• Rough-In Dimension: 11-1/2"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"

Features:
• Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
• Handle Packing, Main Seat, Stop Seat, and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
• User friendly three (3) second Flush Delay
• "Low Battery" Flashing LED
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• Courtesy Flush® Override Button
• Four (4) Size AA alkaline Batteries included
• 1" I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

Compliances & Certifications:
ADA Compliant, BAA Compliant, BABAA Compliant, cUPC Certified

Resources:
• Sloan 3250315 Spec Sheet
• G2 Parts Breakdown and Troubleshooting Guide

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
