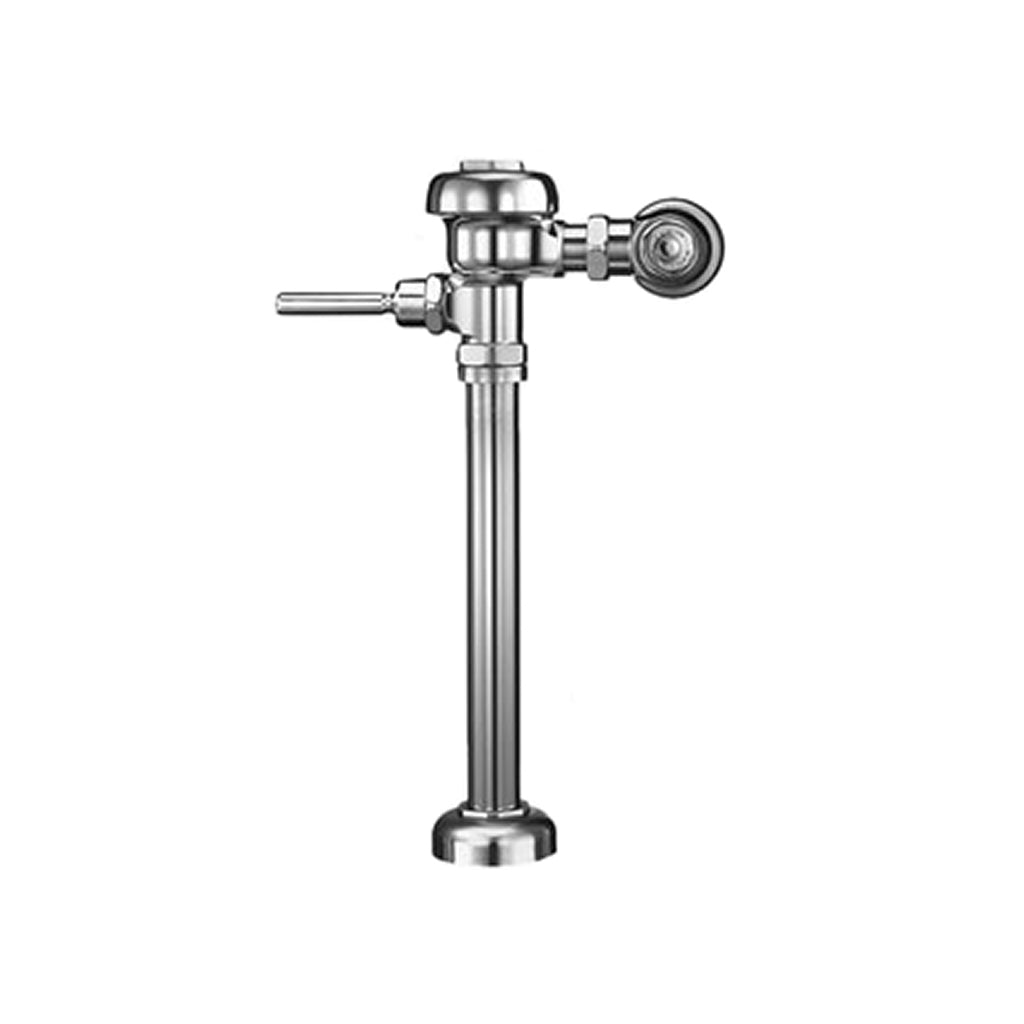

Regal Flushometer 3.5 GPF for Closet with 24-1/2” Vacuum Breaker
Part Number: #49843
Sloan Model Number: REGAL 116-3.5
Sloan Code Number: 3080453
Manufacturer: Sloan
This Regal® Flushometer has a 3.5 GPF flush rate. It is designed for closet applications. It has a 24-1/2” vacuum breaker. Regal Flushometers provide water savings while maintaining performance advantages. Features such as an accurate flush delivery system, quiet performance and durable components add to the economics of the Regal. Sloan code number 3080453.
Specifications:
• Flush Volume: 3.5 GPF (13.2 Lpf)
• Finish: Polished Chrome (CP)
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Top Spud
• Rough-In Dimension: 27" (686mm)
• Spud Coupling: 1-1/2" (38mm)
• Supply Pipe: 1" (25mm)
Features:
• ADA Compliant Metal Oscillating Non-Hold-Open Handle
• 1” I.P.S. Screwdriver Bak-Chek® Angle Stop
• Control Stop Plug
• Sweat Solder Adapter with Cover Tube
• Cast Wall Flange with Set Screw
• Vacuum Breaker Flush Connection
• Spud Coupling and Spud Flange for 1-1/2" Top Spud
• Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
• Diaphragm, Handle Packing and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine Resistance
Compliancies & Certifications:
ADA Compliant, UPC Certified, BAA Compliant
Resources:
• Sloan Regal 3080453 Spec Sheet
• Regal XL Flushometer Parts Breakdown and Troubleshooting Guide
Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
