G2 Handsfree Urinal Conversion Kit - 1.5 or 1.0 GPF



Part Number: #08800
Mfg No.: RESS-U
Mfg: Sloan Valve Co

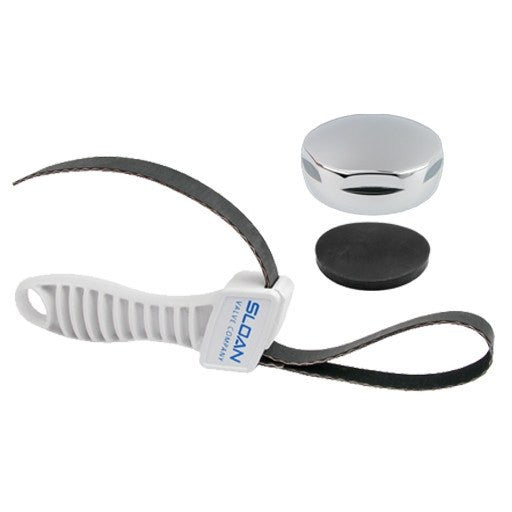

This product is shipped with the 1.0 GPF regulator installed. Change regulator to convert to a 1.5 GPF. Comes with Handle Cap & Gasket (#08396), and Sloan Strap Wrench (Pictured Above).

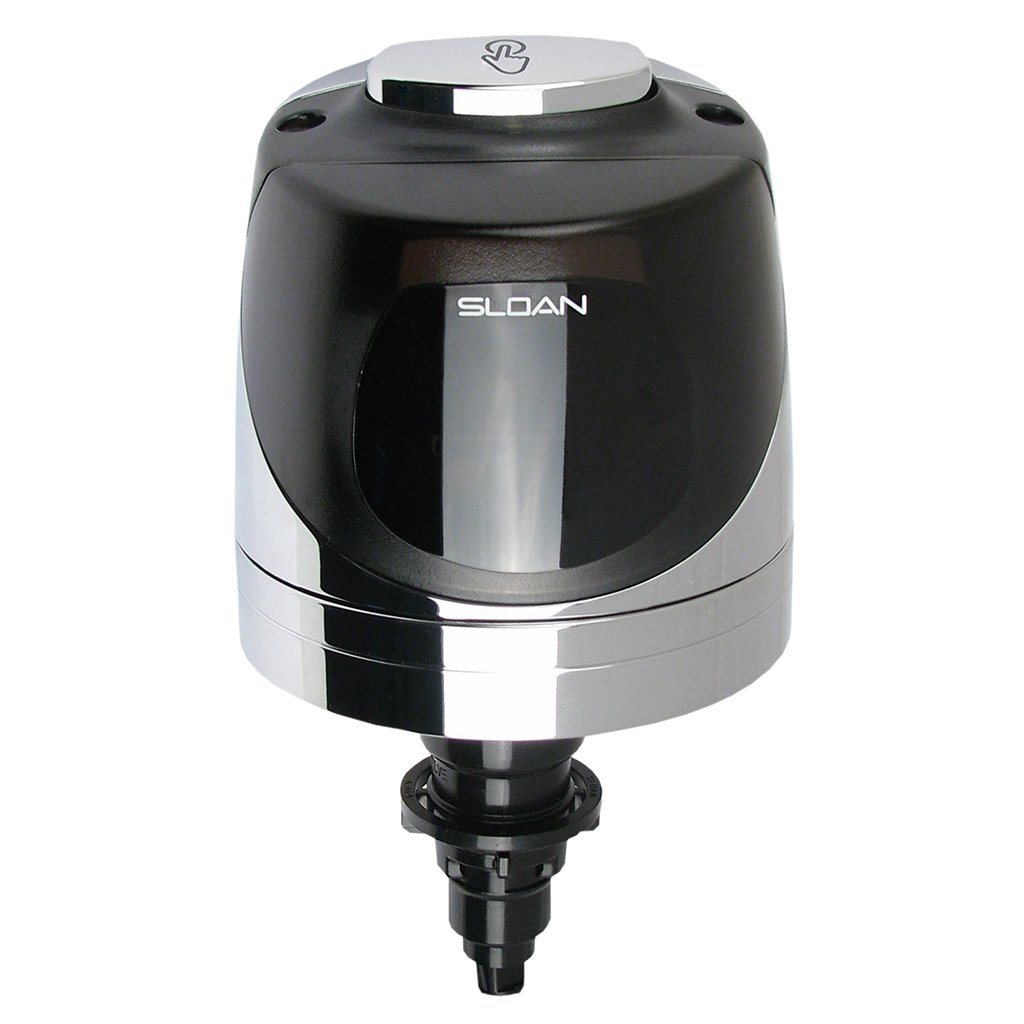

Quiet, Exposed, OPTIMA Plus®, Battery Powered, Sensor Operated Urinal Flushometer Retrofit Conversion Kit for Sloan Royal®, Sloan® and Regal® Flushometers with the following features:
• PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• ADA Compliant OPTIMA Plus® Battery Powered Infrared Sensor for automatic “No Hands” operation
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Latching Solenoid Operator
• Engineered Metal Cover with replaceable Lens Window
• Courtesy Flush™ Override Button
• Four (4) Size AA Batteries factory installed
• “Low Battery” Flashing LED
• Infrared Sensor Range Adjustment Screw
• Initial Set-up Range Indicator Light (first 10 minutes)
• Chrome Plated Metal Handle Cap
• Installation Tools provided
• Diaphragm to be molded from PERMEX™ Rubber Compound for Chloramine resistance

View Sloan 3325402 Spec Sheet
