Royal Flushometer 1.5 GPF Speciality Rough Brass with 10-3/4 LDIM & 3-inch Push Button for Urinal

Part Number: #18300
Sloan Model Number: ROYAL 190-1.5-10-3/4-LDIM-L3
Sloan Code Number: 3913021
Manufacturer: Sloan

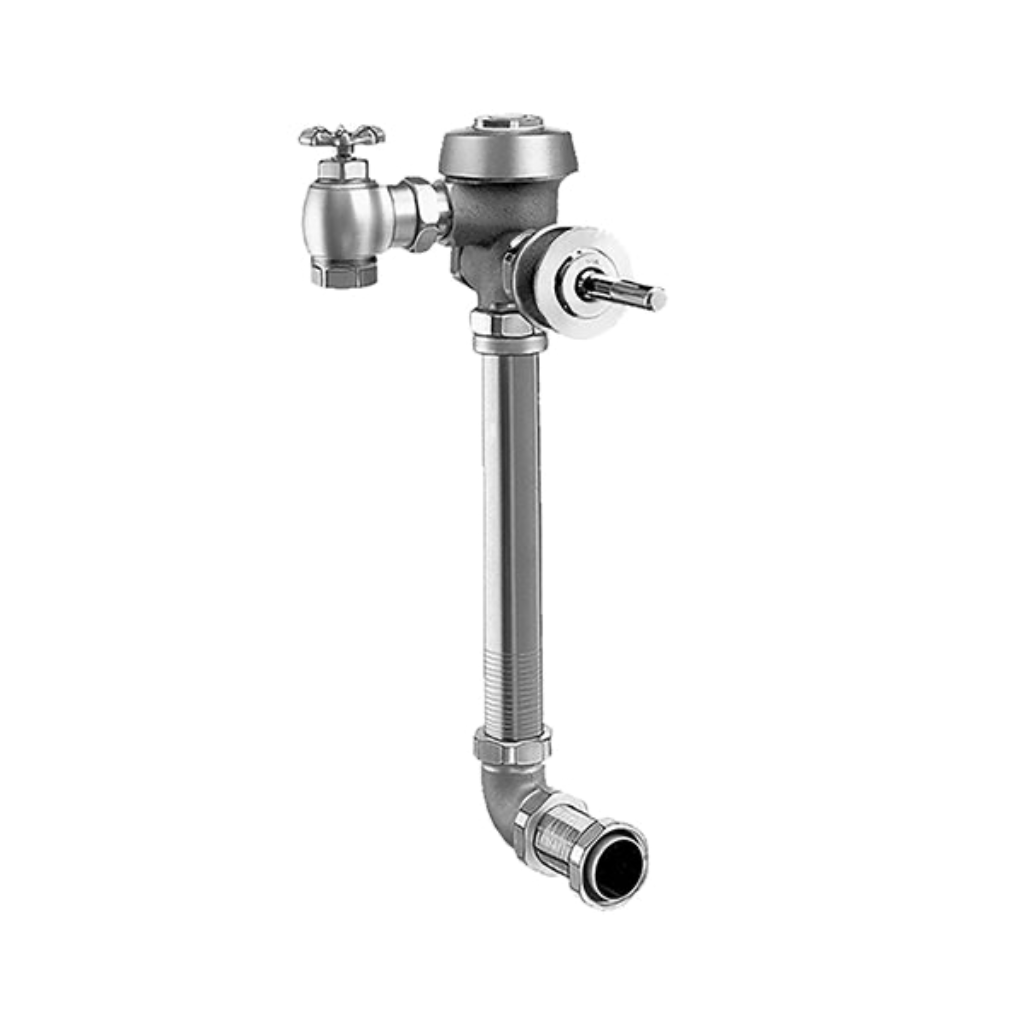

This 1.5 GPF Concealed Royal Urinal Flushometer with 3-inch Metal Oscillating Push Button is from Sloan. It is a manual hydraulic flushometer with a 10-3/4-inch "L" Dimension. Unit has a rough brass finish. Sloan model number ROYAL 190-1.5-10-3/4-LDIM-L3, code number 3913021.

Specs:
• Flush Volume: 1.5 GPF
• Finish: Rough Brass
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Rear Spud
• Rough-In Dimension: 14-1/2"
• Spud Coupling: 1-1/4"
• Supply Pipe: 1"
• L Dimension: 10-3/4"
• Push Button: 3" Metal Oscillating

Features:
• Flush volumes start as low as a pint of water
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which, prevents urinal from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037.

Compliances & Certifications:
BAA Compliant, BABAA Compliant, cUPC Certified, Made in the USA, UPC Certified

Resources:
• Sloan 3913021 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
