Royal Flushometer 3.5 GPF Speciality Rough Brass with 10-3/4 LDIM & 3-inch Push Button for Closet

Part Number: #18299
Sloan Model Number: ROYAL 152-3.5-10-3/4-LDIM-L3
Sloan Code Number: 3011683
Manufacturer: Sloan

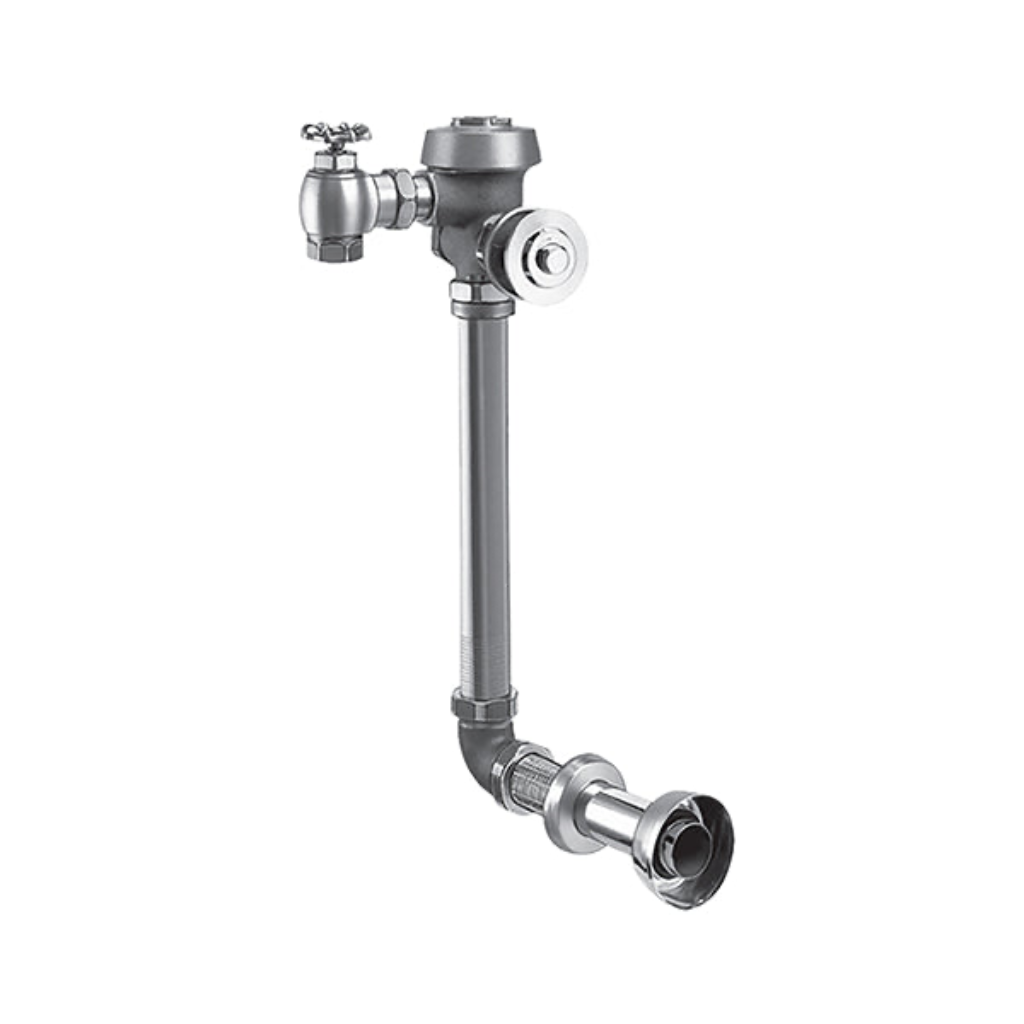

This 3.5 GPF Concealed Royal Closet Flushometer with 3-inch Metal Oscillating Push Button is from Sloan. It is a manual hydraulic flushometer with a 10-3/4-inch "L" Dimension. Unit has a rough brass finish. Sloan model number ROYAL 152-3.5-10-3/4-LDIM-L3, code number 3011683.

Specs:
• Flush Volume: 3.5 GPF
• Finish: Rough Brass
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Rear Spud
• Rough-In Dimension: 24"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"
• L Dimension: 10-3/4"
• Push Button: 3" Metal Oscillating

Features:
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Metal Direct Acting, Non-Hold-Open Push Button with Triple Seal Handle Packing
• 1" I.P.S. Wheel Handle Bak-Chek® Angle Stop
•  Elbow Flush Connection for 1-1/2" Concealed Back Spud
• Non-Hold-Open Push Button, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance

Compliances & Certifications:
BAA Compliant, BABAA Compliant, Made in the USA, UPC Certified

Resources:
• Sloan 3011683 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
