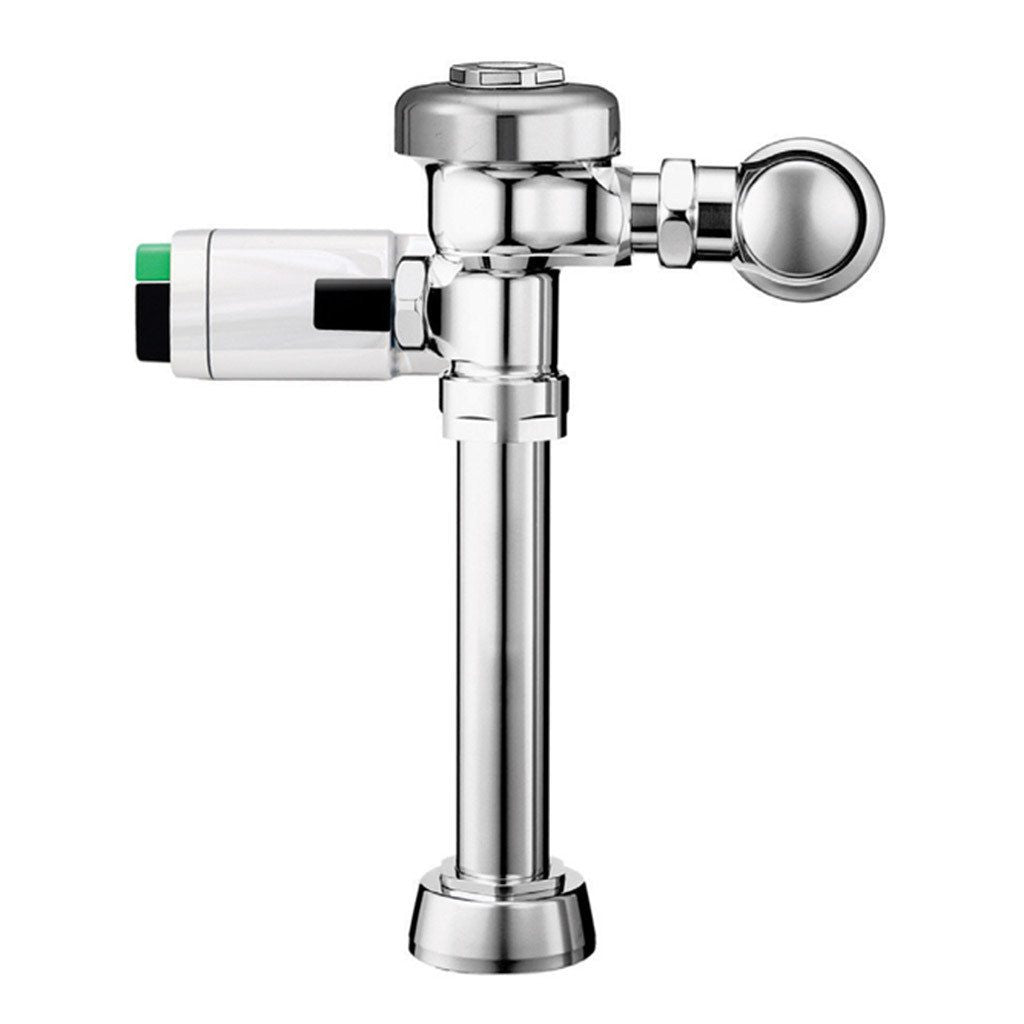

Sloan Dual Flush Side Mount Flushometer 1.1 or 1.6 GPF for Closet

Part Number: #86871
Sloan Model Number: SLOAN 111 DFSM-1.6/1.1
Sloan Code Number: 3780037
Manufacturer: Sloan

Specifications:
• Flush Volume: 1.6/1.1 gpf
• Finish: Polished Chrome
• Power Type: Battery
• Battery Life: 3 years
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Top Spud
• Rough-In Dimension: 11 1⁄2"
• Spud Coupling: 1 1⁄2"
• Supply Pipe: 1"

Features:
• Non-Hold-Open True Mechanical Override Full Flush/Dual Flush Buttons
• If the user is present for less than one minute and leaves the sensing zone or chooses the small GREEN override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
• If the user is present for greater than one minute and leaves the zone or chooses the large BLACK override button, the full flush initiates (1.6 gpf/6.0 Lpf) eliminating solid waste and paper
• Four (4) size C alkaline batteries included
• “Low Battery” Flashing LED
• “User in View” Flashing LED
• 72-Hour Sentinel Flush
• 1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
• Sweat Solder Adapter w/Cover Tube and Cast Wall Flange with Set Screw
• No External Volume Adjustment to Ensure Water Conservation
• Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
• ADA Compliant Battery Powered Infrared Sensor for automatic “Hands- free” operation
• PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action

Compliances & Certifications:
ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC Certified, cUPC Green Certified, Green Globes Water Credit)

Resources:
View Sloan 3780037 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
