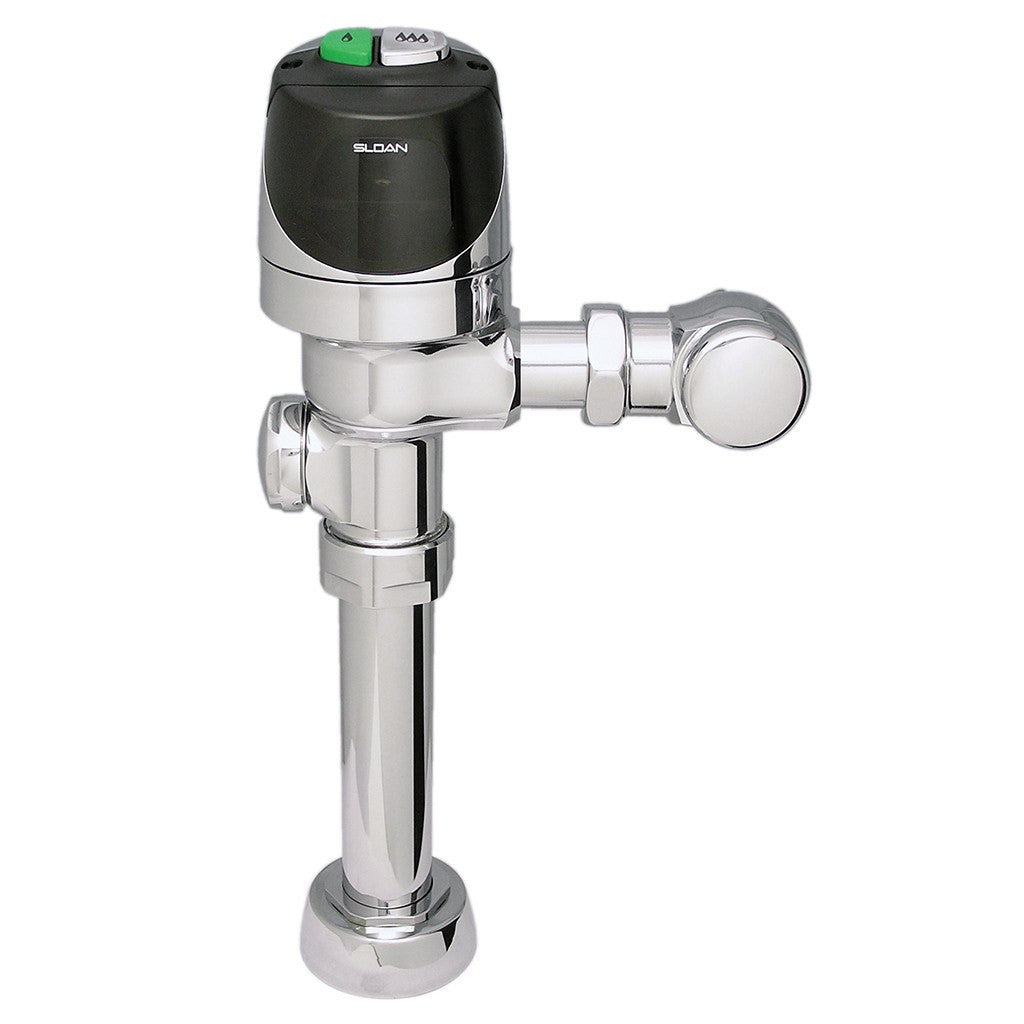

ECOS Dual Flush Flushometer 1.1 GPF or 1.6 GPF for Closet

$698.32

08922

Part Number: #08922
Sloan Model Number: ECOS8111-1.6/1.1
Sloan Code Number: 3370400
Manufacturer: Sloan

This ECOS Sensor Flushometer is a top spud, dual flush, battery-operated exposed flushometer designed for use with water closet (toilet) applications.

Specifications:
• Flush Volume: 1.6/1.1 GPF
Finish: Polished Chrome
Power Type: Battery
Battery Life: 6 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud

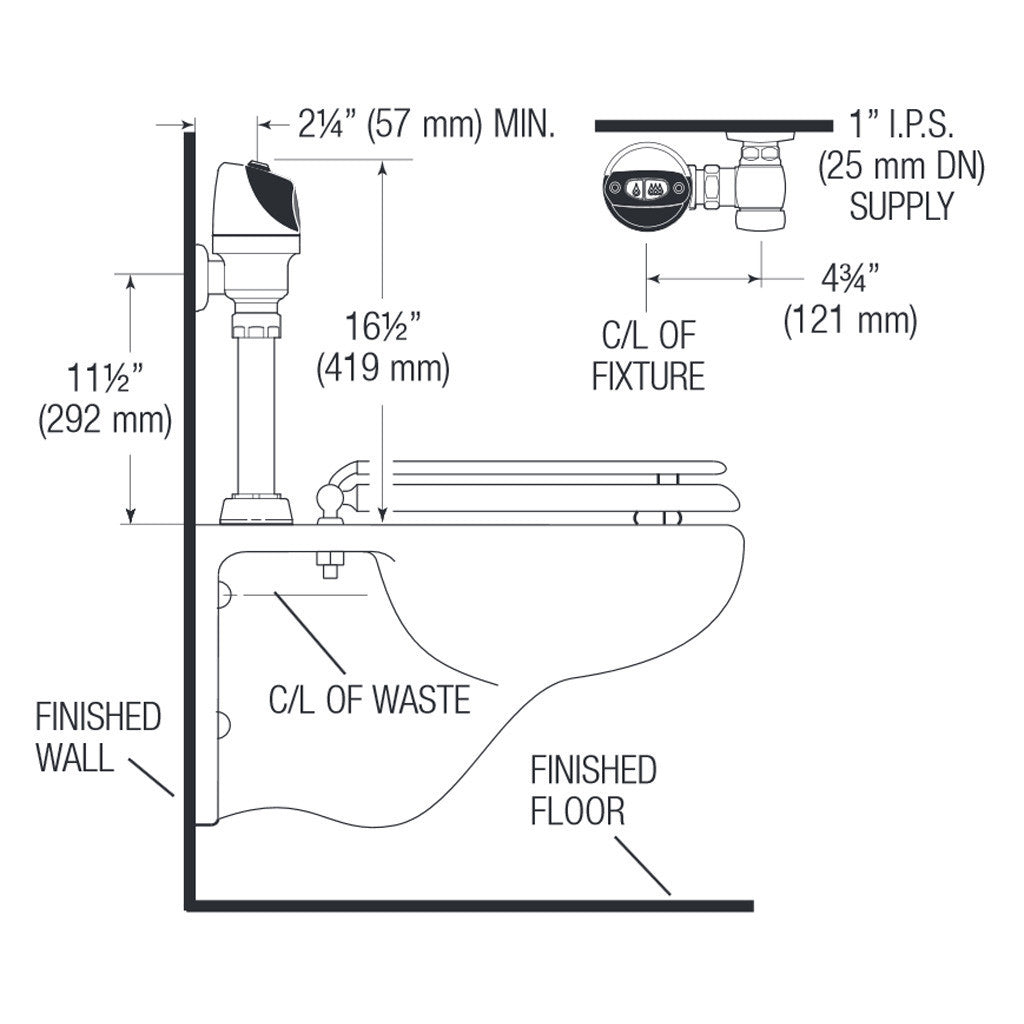

Rough-In Dimension: 11-½ inches
Spud Coupling: 1-1/2 inches
Supply Pipe: 1 inch

Features:
Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
User friendly three (3) second Flush Delay
“Low Battery” Flashing LED
Sweat solder adapter with cover tube and cast wall flange with set screw
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full fl ush initiates (1.6 gpf/ 6.0 Lpf) eliminating solid waste and paper
Engineered Metal Cover with replaceable Lens Window
PERMEX® Synthetic Rubber Flex Tube Diaphragm with Dual filtered bypass designed for improved life and reduced maintenance
Four (4) Size AA alkaline Batteries included
Courtesy Flush® Override Button
1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

Compliancies & Certifications:
ADA Compliant, BAA Compliant, BREEAM Materials Credit, BREEAM Water Credit, Carbon Neutral, cUPC Certified, cUPC Green Certified, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit

Resources:
• View Sloan 3370400 Spec Sheet
ECOS Dual Flush Parts Breakdown


Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
