Part Number: #47670
Sloan Model Number: ECOS 8186-0.125-CP-L/OR
Sloan Code Number: 3370425
Manufacturer: Sloan

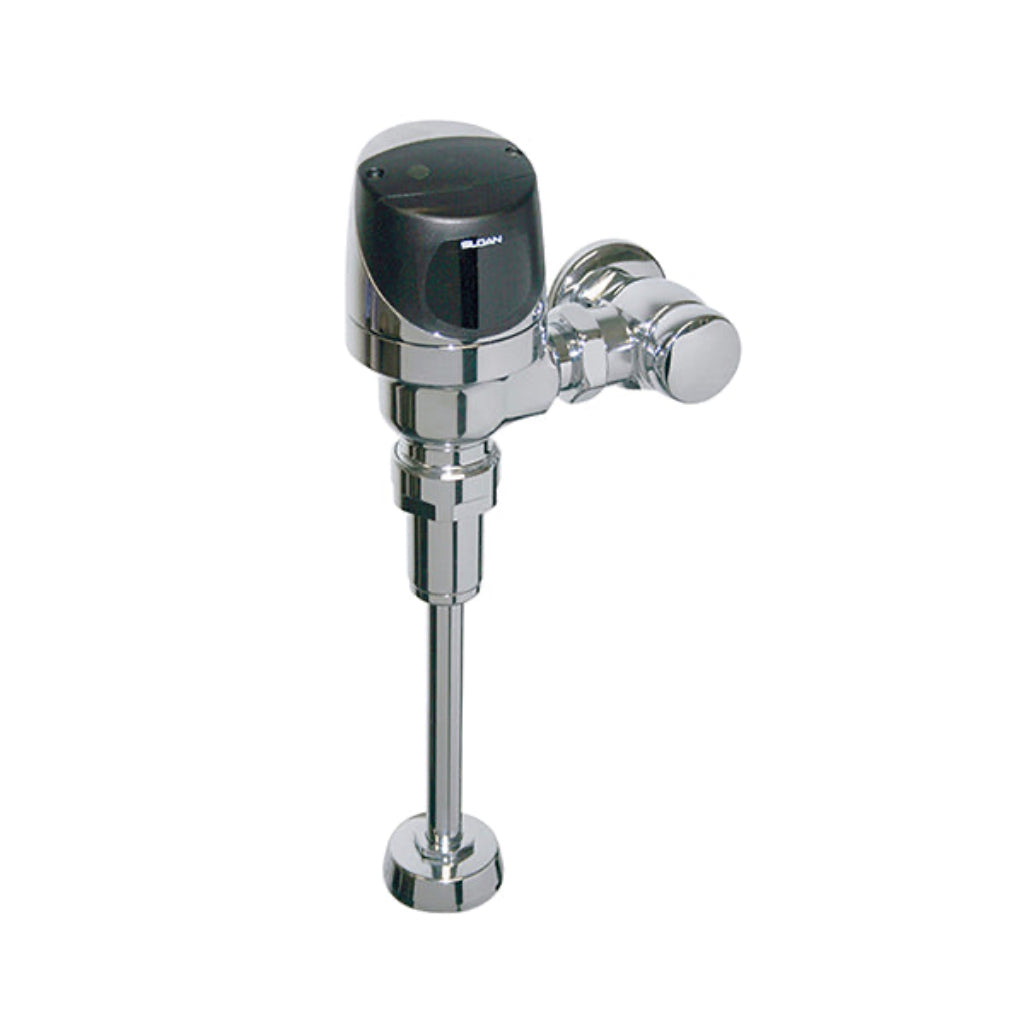

This ECOS Sensor Flushometer is a top spud, single flush, battery powered, exposed flushometer with less override designed for use with urinal applications. Sloan model number ECOS 8186-0.125-CP-L/OR, code number 3370425.
Specifications:
• Flush Volume: 0.125 GPF
• Finish: Polished Chrome
• Power Type: Battery
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud
• Rough-In Dimension: 11-1/2"
• Spud Coupling: 3/4"
• Supply Pipe: 3/4"
• Override: Less
• Control Stop: 3/4"
• Flush Connection: 3/4"
Features:
• Water-efficient flush volume of either 0.13 GPF or 0.25 GPF
• Automatically operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• User-friendly, three-second flush delay
• High copper, low zinc brass castings for dezincification resistance
• Fixed metering bypass and no external volume adjustment to ensure water conservation
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy
Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
Compliancies & Certifications:
ADA Compliant, BAA Compliant, BABAA Compliant, BREEAM Materials Credit, BREEAM Water Credit, cUPC Green Certified, EPD, Green Globes Credit, Green Globes Water, HPD, IAPMO, LEED Credit, LEED HPD, LEED Water, Satisfies LEED Credits, EPA WaterSense Listed, WELL Building Standard
Resources:
• Sloan 3370425 Spec Sheet
Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
