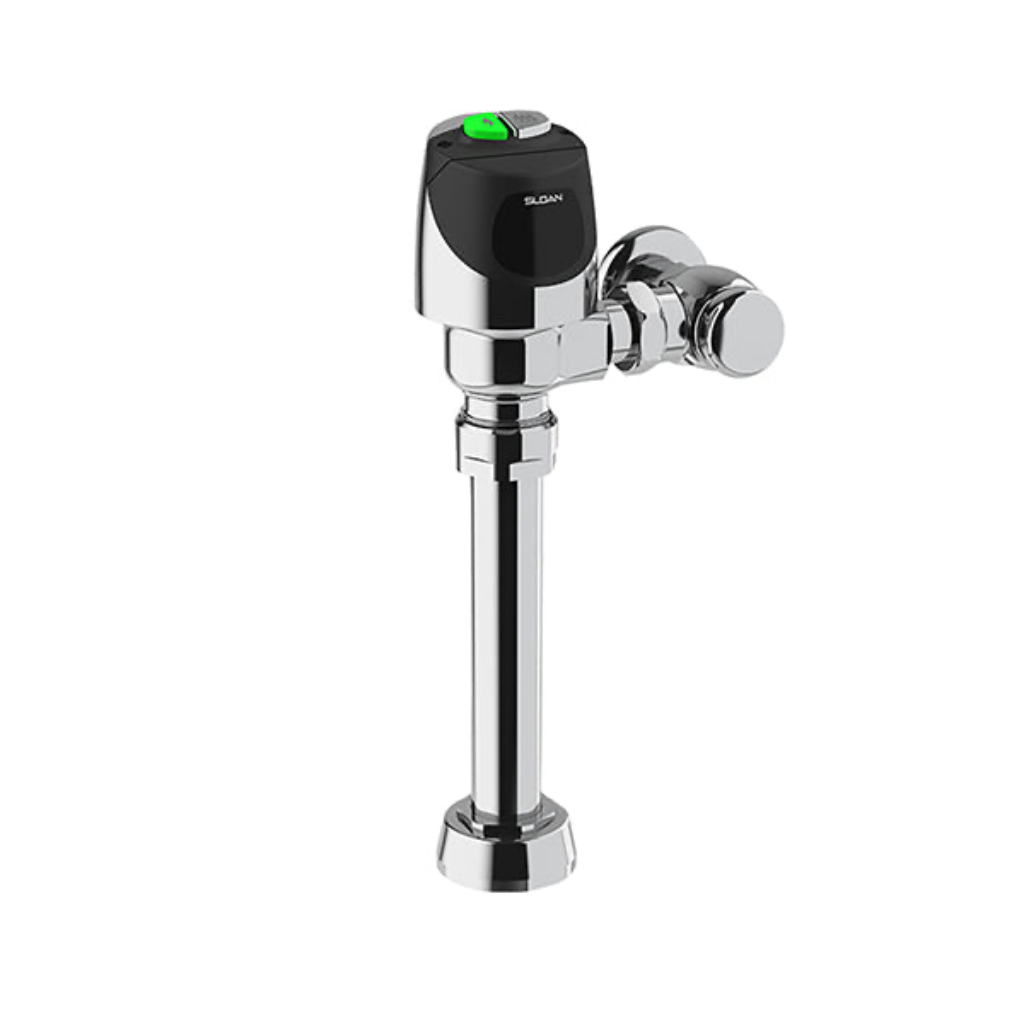

ECOS Dual Flush Flushometer 1.1 GPF or 1.6 GPF for Closet (Battery Powered)
Part Number: #19841
Sloan Model Number: ECOS 8111-1.6/1.1
Sloan Code Number: 3370452
Manufacturer: Sloan
This 1.6/1.1 GPF Exposed ECOS Sensor Closet Flushometer is from Sloan. It is a dual flush, battery-powered flushometer that comes with lithium batteries. Unit has a polished chrome finish. Sloan model number ECOS 8111-1.6/1.1, code number 3370452.
Specifications:
• Flush Volume: 1.6/1.1 GPF
• Finish: Polished Chrome
• Power Type: Battery
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Top Spud
• Rough-In Dimension: 11-1/2"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"
• Special Features: Lithium Batteries
Features:
• Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
• User friendly three (3) second Flush Delay
• "Low Battery" Flashing LED
• Sweat solder adapter with cover tube and cast wall flange with set screw
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 GPF) eliminating liquid and paper waste, saving 1/2 gallon of water.
• If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full flush initiates (1.6 GPF) eliminating solid waste and paper.
• Engineered Metal Cover with replaceable Lens Window
• PERMEX® Synthetic Rubber Flex Tube Diaphragm with Dual filtered bypass designed for improved life and reduced maintenance
• Four (4) Size AA Lithium Batteries included
• Courtesy Flush® Override Button
• 1" I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Compliances & Certifications:
ADA Compliant, BAA Compliant, BABAA Compliant, BREEAM Materials Credit, BREEAM Water Credit, Carbon Neutral, cUPC Certified, cUPC Green Certified, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit
Resources:
• Sloan 3370452 Spec Sheet
Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
