ECOS Single Flush Flushometer 0.5 GPF for Urinal (Hardwired)

Part Number: #18339
Sloan Model Number: ECOS 186-0.5-HW
Sloan Code Number: 3370441
Manufacturer: Sloan

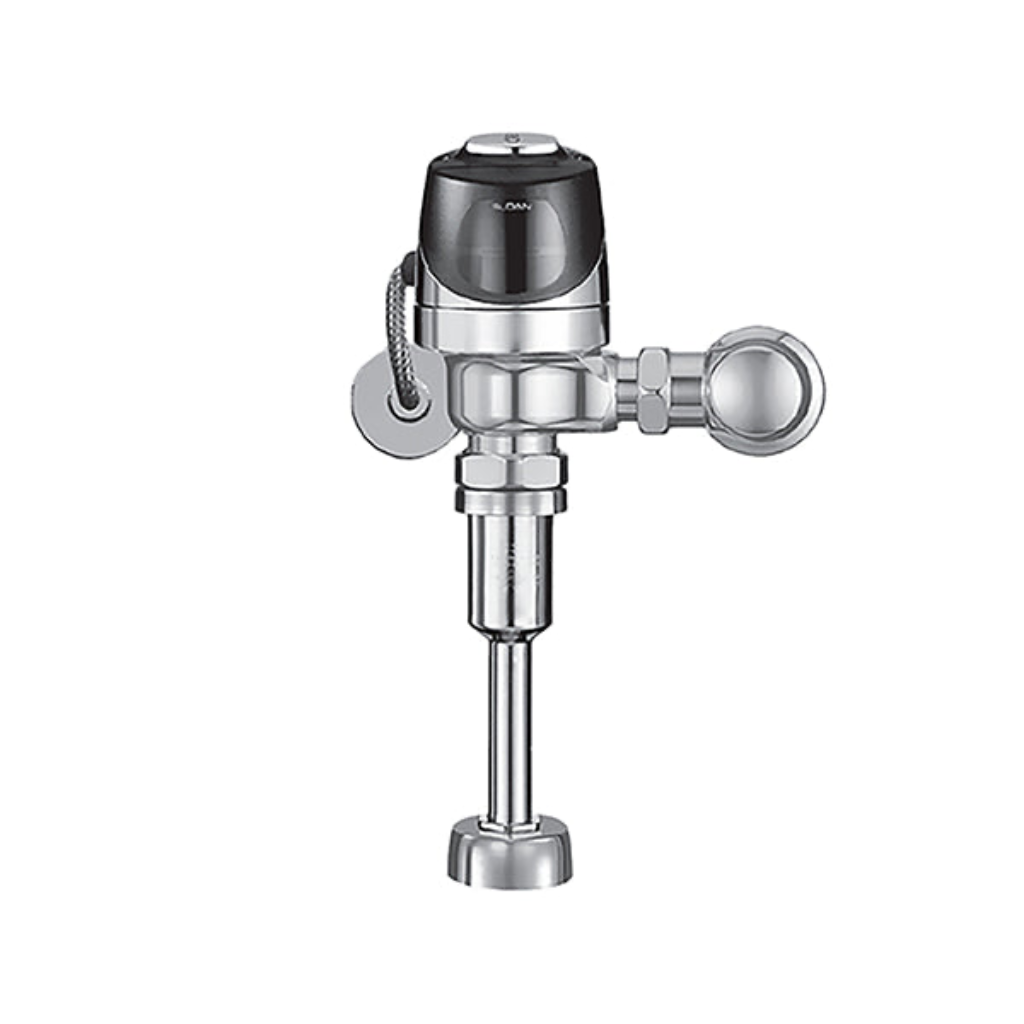

This 0.5 GPF Exposed ECOS Urinal Flushometer is from Sloan. It is a single flush, hardwired flushometer with an infrared sensor. Unit has a polished chrome finish. Sloan model number ECOS 186-0.5-HW, code number 3370441.

Specs:
• Flush Volume: 0.5 GPF
• Finish: Polished Chrome
• Power Type: Hardwired
• Valve: Diaphragm
• Bypass: Dual-Filtered Bypass
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud
• Rough-In Dimension: 11-1/2"
• Spud Coupling: 3/4"
• Supply Pipe: 3/4"
• Override: Electrical
• Control Stop: 3/4"
• Flush Connection: 0.75

Features:
• Includes an 18" electrical cable
• Sweat solder adapter with cover tube and cast wall flange with set screw
• Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• Line Powered with 6 VAC Step Down Transformer
• 3/4" I.P.S. Screwdriver Bak-Chek® Angle Stop
• Free Spinning, Vandal Resistant Stop Cap
• ADA Compliant Sloan® ECOS® Electronic Infrared Sensor for automatic "No Hands" operation
• Courtesy Flush® Override Button

Compliances & Certifications:
ADA Compliant, BAA Compliant, BABAA Compliant, BREEAM Water Credit, cUPC Certified, cUPC Green Certified, Green Globes Water Credit, LEED V4 Water Efficiency Credit, Satisfies LEED Credits, WaterSense Listed

Resources:
• Sloan 3370441 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
