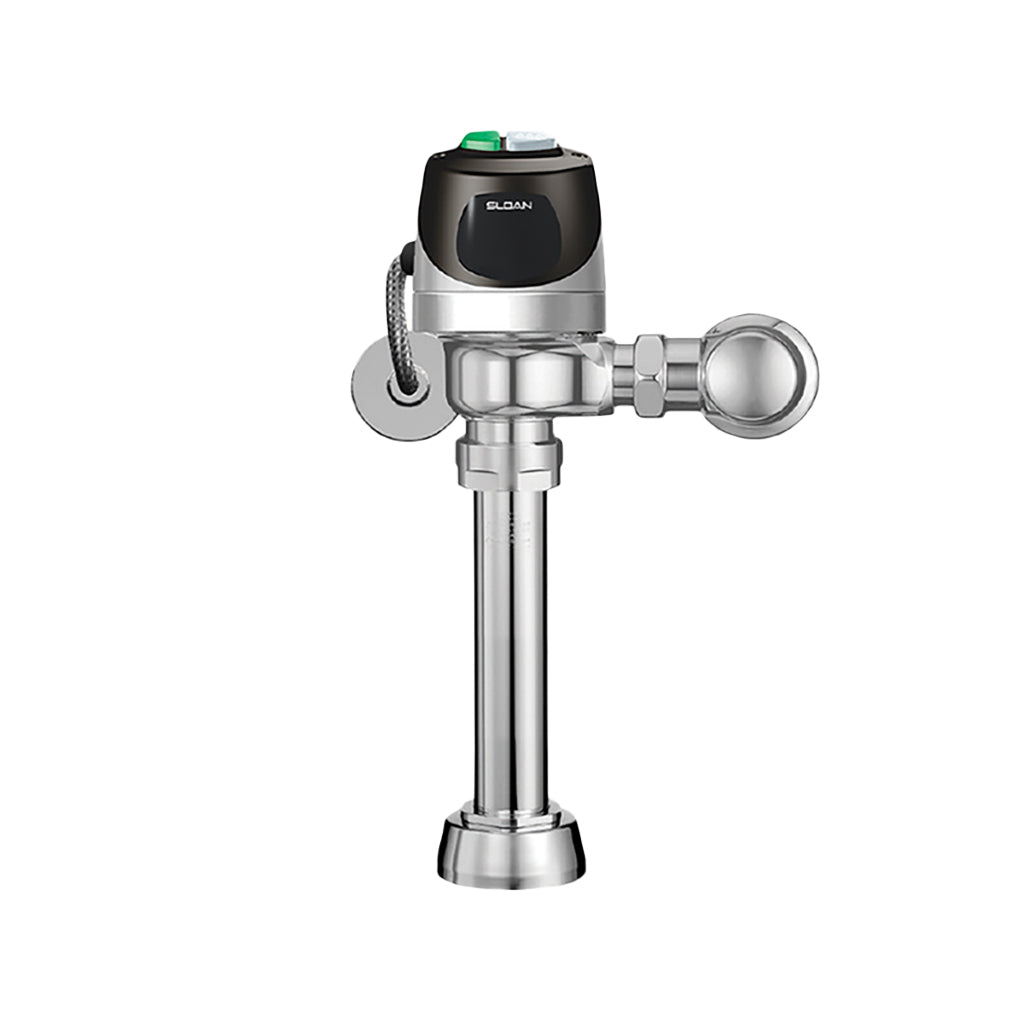

ECOS Dual Flush Flushometer 1.1 GPF or 1.6 GPF for Closet (Hardwired)
Part Number: #48454
Sloan Model Number: ECOS 111-1.6/1.1-HW
Sloan Code Number: 3370420
Manufacturer: Sloan
This ECOS Sensor Flushometer is a top spud, dual flush, handwired exposed flushometer designed for use with water closet (toilet) applications.
Specifications:
• Flush Volume: 1.6/1.1 GPF
• Finish: Polished Chrome
• Power Type: Hardwired
• Valve: Diaphragm
• Bypass: Dual-Filtered Bypass
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Top Spud
• Rough-In Dimension: 11-1/2"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"
• Override: Electrical
• Control Stop: 1"
• Inlet: 1"
• Flush Connection: 1.5"
Features:
• User friendly three (3) second flush delay
• Sweat solder adapter with cover tube and cast wall flange with set screw
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• Line Powered with 6 VAC Step Down Transformer
• Free Spinning, Vandal Resistant Stop Cap
• Includes 18" electrical cable
• If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 GPF) eliminating liquid and paper waste, saving 1/2 gallon of water
• If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full flush initiates (1.6 GPF) eliminating solid waste and paper
• ADA Compliant Sloan ECOS® Electronic Dual Flush Line Powered Infrared Sensor for automatic "No Hands" operation
• 1" I.P.S. Screwdriver Bak-Chek® Angle Stop
• Courtesy Flush® Override Button
• PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX® rubber compound for Chloramine resistance
Compliancies & Certifications:
ADA Compliant, BAA Compliant, BABAA Compliant, BREEAM Water Credit, cUPC Certified, cUPC Green Certified, Green Globes Water Credit
Resources:
• Sloan ECOS Flushometer 3370420 Spec Sheet
Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
