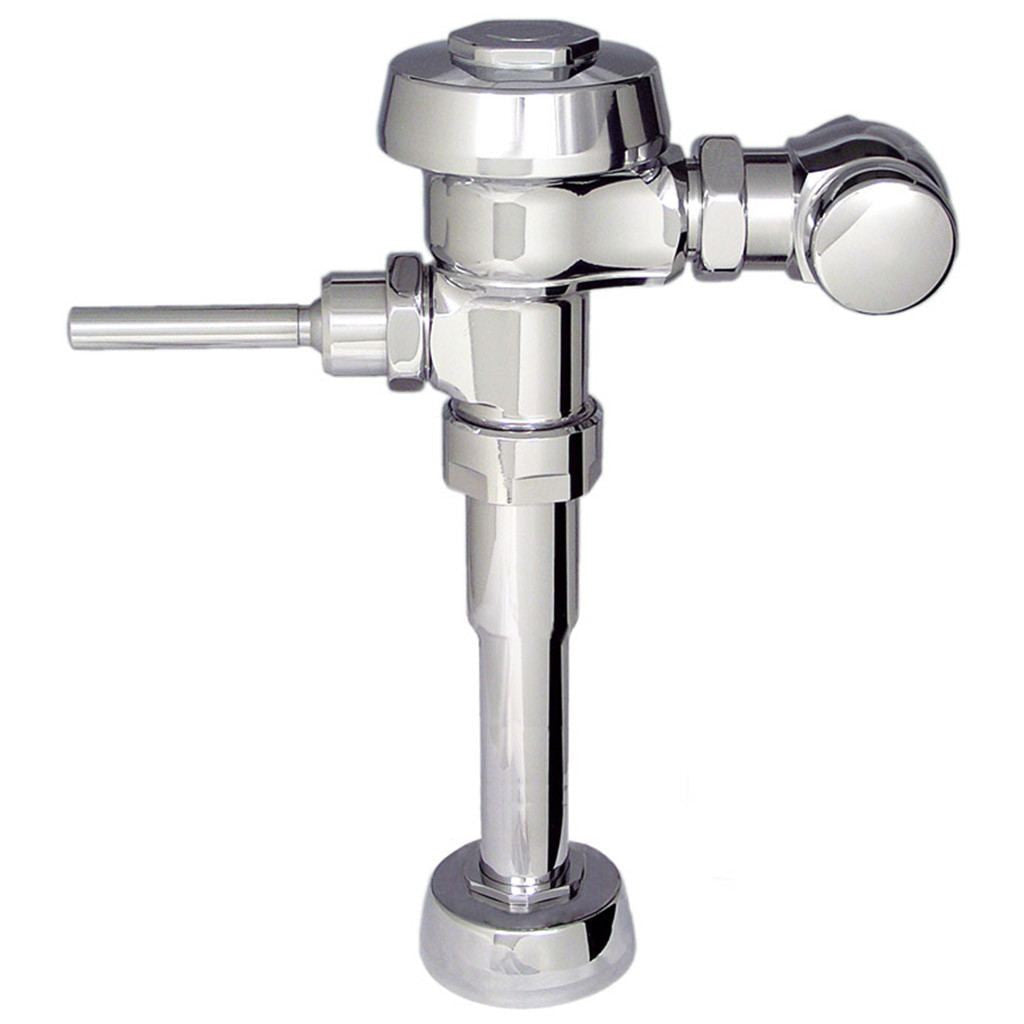

Royal Flushometer 3.5 GPF for Urinal

$160.03

08056

Part Number: #08056
Sloan Model Number: ROYAL 180-3.5
Sloan Code Number: 3012400
Manufacturer: Sloan

Exposed Urinal Flushometer for 1-1/4" top spud urinals. 3.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Royal® Exposed Manual Urinal Flushometer.


Specifications:
• Flush Volume: 3.5 gpf
• Finish: Polished Chrome
(CP)
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud
• Rough-In Dimension: 11 1⁄2"
• Spud Coupling: 1-1⁄4" (19mm)
• Supply Pipe: 1"



Features:
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
• Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance
• ADA Compliant Metal Oscillating Non-Hold-Open Handle
• 1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap



Compliances & Certifications:
ADA Compliant, UPC Certified, BAA Compliant


Resources:
• Sloan 3012400 Spec Sheet
Royal Flushometer Parts Breakdown and Troubleshooting Guide



Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
