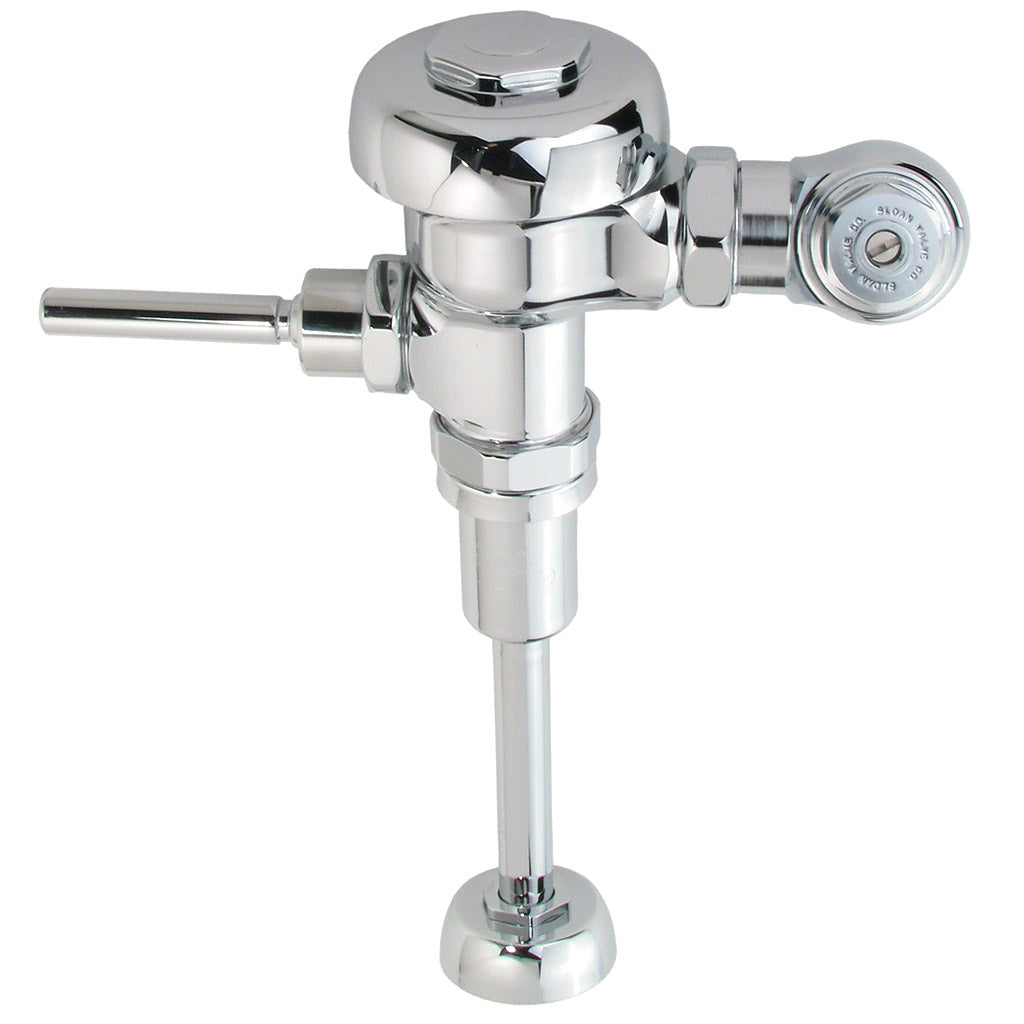

Regal Flushometer 0.5 GPF for Urinal

Part Number: #81296
Sloan Model Number: REGAL 186-0.5
Sloan Code Number: 3982628
Manufacturer: Sloan

0.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Regal® Exposed Manual Urinal Flushometer.

Specifications:
• Flush Volume: 0.5 gpf (1.9 Lpf)
• Finish: Polished Chrome (CP)
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud
• Rough-In Dimension: 11 1⁄2" (292mm)
• Spud Coupling: 3⁄4" (19mm)
• Supply Pipe: 3⁄4" (19mm)

Features:
• Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
• 3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
• Spud Coupling and Spud Flange for 3⁄4” Top Spud
• ADA Compliant Metal Oscillating Non-Hold-Open Handle
• Sweat Solder Adapter with Cover Tube
• Cast Wall Flange with Set Screw
• Vacuum Breaker Flush Connection

Compliances & Certifications:
ADA Compliant, BAA Compliant, BREEAM Materials Credit, BREEAM Water Credit, cUPC Certified, cUPC Green Certified, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, LEED Materials & Resources EPD Credit, LEED V4 Water Efficiency Credit, Satisfies LEED Credits, WaterSense Listed

Resources:
• Sloan 3982628 Spec Sheet
• Regal XL Flushometer Parts Breakdown and Troubleshooting Guide

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
