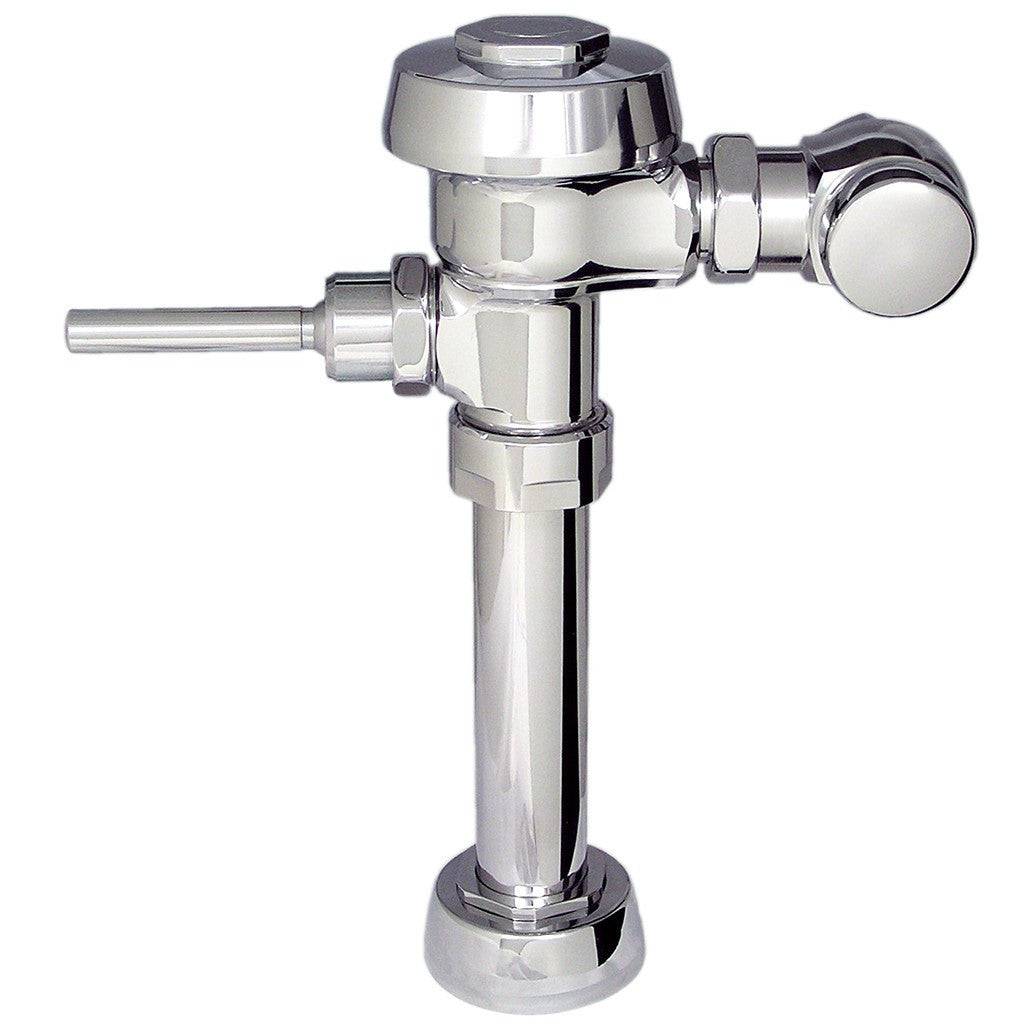

Royal Flushometer 1.28 GPF for Closet with 15" Vacuum Breaker



Part Number: #87327
Sloan Model Number: ROYAL 111-1.28 w/ 15" VB
Sloan Code Number: 3910168
Manufacturer: Sloan

1.28 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Royal® Exposed Manual Water Closet Flushometer. Exposed Water Closet Flushometer for floor mounted or wall hung top spud bowls. This unit is a combination of the 1.28 GPF Royal Closet Flushometer (Sloan Code Number 3910168) and Sloan's 1-1/2" x 15" Vacuum Breaker (Sloan Code Number 0323017). Learn what makes a Royal flushometer different than a Regal flushometer in our Royal Versus Regal Blog Article.


• Flush Volume: 1.28 gpf (4.8 Lpf)
Finish: Polished Chrome (CP)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud
Rough-In Dimension: 11 1⁄2" (292mm)
Spud Coupling: 1 1⁄2" (38mm)
Supply Pipe: 1" (25mm)


• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
• Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance
• ADA Compliant Metal Oscillating Non-Hold-Open Handle
• 1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap


Compliances & Certifications:
ADA Compliant, BAA Compliant, BREEAM Materials Credit, BREEAM Water Credit, Carbon Neutral, cUPC Certified, cUPC Green Certified, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, LBC Credit, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, LEED V4 Water Efficiency Credit, Satisfies LEED Credits, WaterSense Listed, WELL Building Standards


Sloan 3910168 Spec Sheet
Royal Flushometer Parts Breakdown and Troubleshooting Guide


Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
