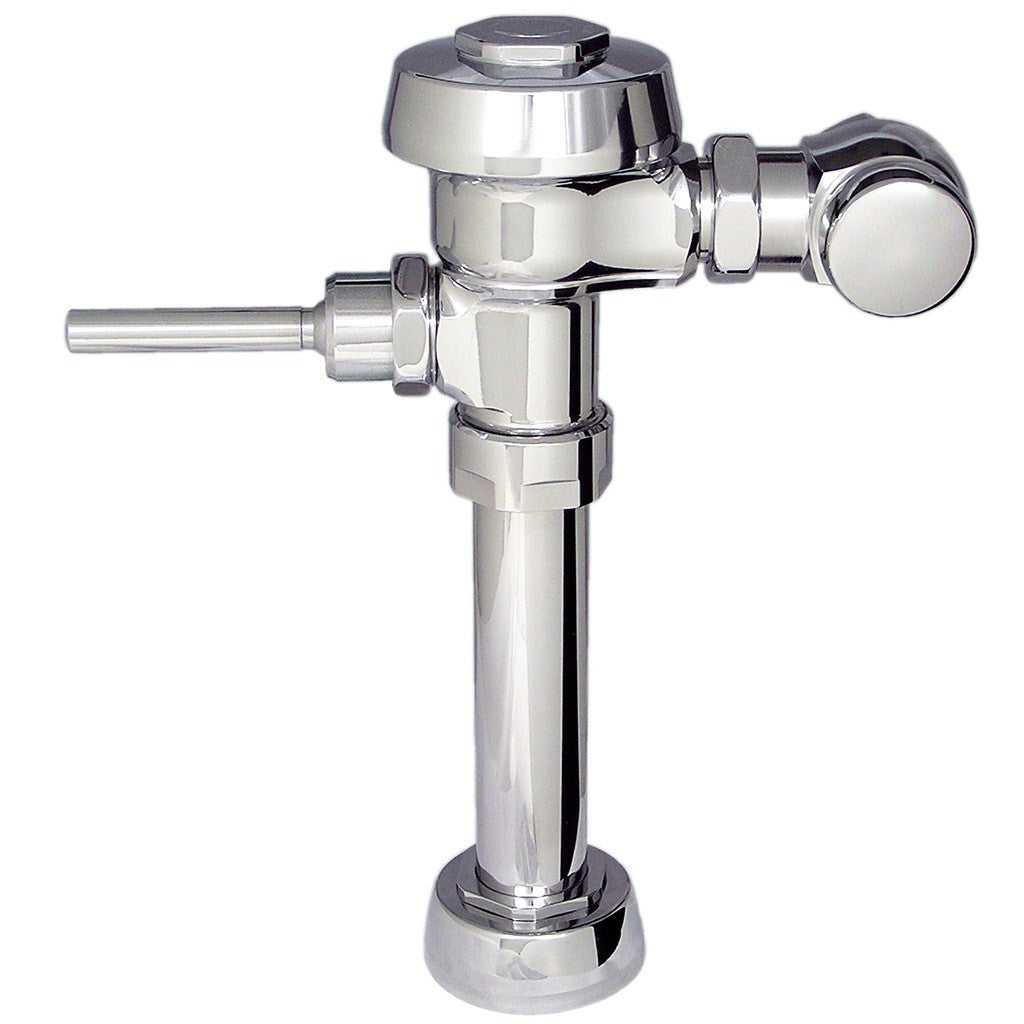

Closet Royal Flushometer 1.6 GPF

$125.90

08330

Part Number: #08330
Mfg No.: 111
Mfg: Sloan Valve Co



Exposed Water Closet Flushometer for floor mounted or wall hung top spud bowls.

Specifications:
1.6 GPF Exposed, Diaphragm Type, Chrome Plated Closet Flushometer for left or right hand supply with the following features:
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
• 1” I.P.S. Screwdriver Bak-Chek® angle stop w/ free spinning vandal resistant stop cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection w/ One-piece Bottom Hex Coupling Nut
• Spud Coupling and Flange for 1-1/2” Top Spud
• Sweat Solder Adapter w/Cover Tube & Cast Wall Flange w/ Set Screw
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID Technology
• Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance

View Sloan 3010000 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
